From a part to a CAD model.

Scan-to-CAD that recovers obsolete and undocumented components as editable, manufacturable geometry: a physical part, captured, rebuilt in CAD, and returned as a replacement you own. Starts with 3D scanning; reorders run from your approved file, confirmed against queue and material availability.

Send a Model, Design, or Part Where it pays off
The process4 steps
01
CaptureSCAN
In-house 3D scanning of the existing part and its reference surfaces.
02
Mesh to surfacesMESH
Process the scan into clean reference geometry.
03
Parametric CADCAD
Rebuild the part as editable, dimensioned CAD you can revise and reorder.
04
ValidationVERIFY
Check the model back against the original and against the build envelope.

Where it pays off.

Three situations where scanning a part back into editable CAD is the fastest way to keep production moving.

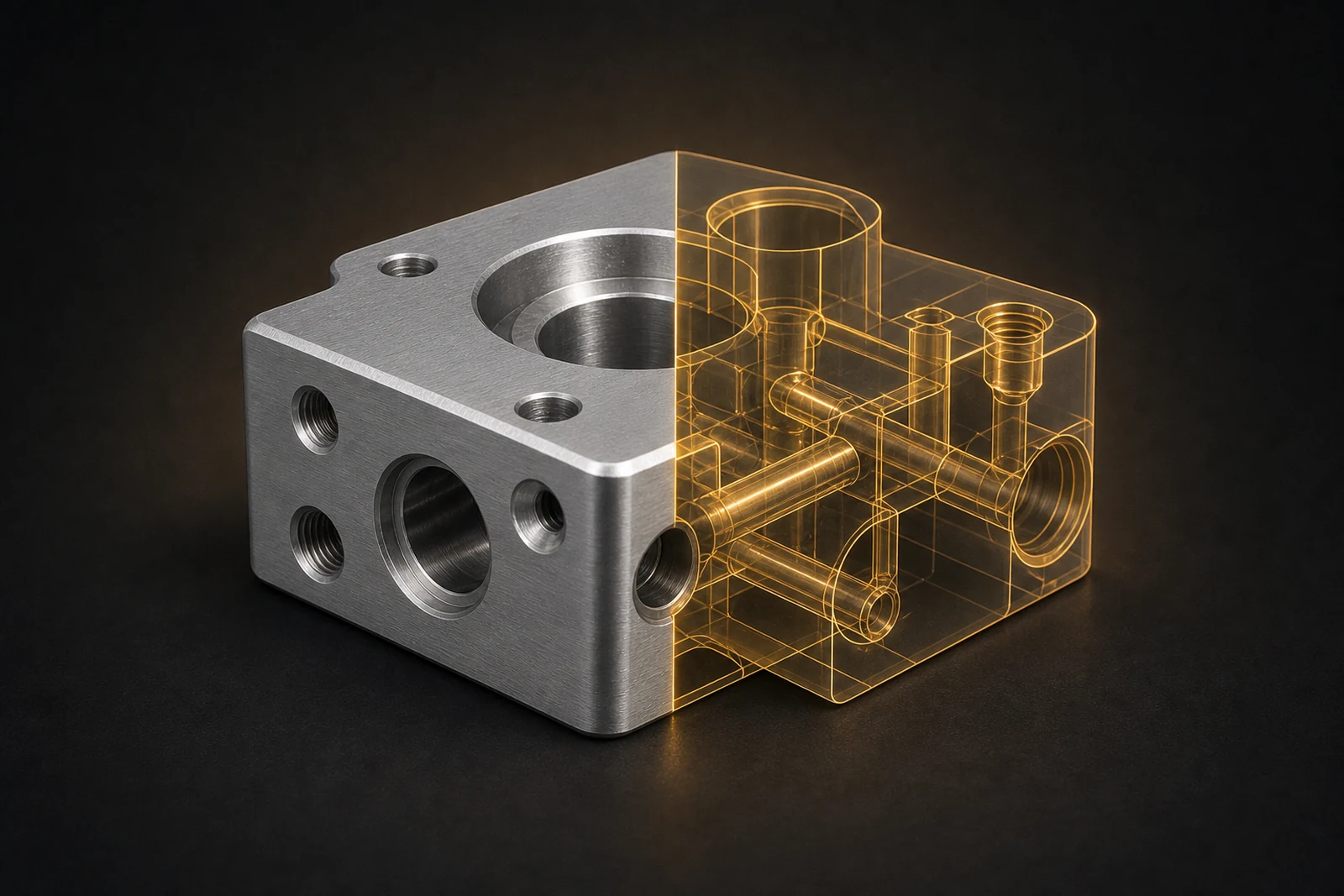

A machined aluminum hydraulic manifold transitioning into a transparent gold CAD cutaway that reveals internal passages.
01
Obsolete component reproduction
Rebuild discontinued parts with no surviving drawing into manufacturable CAD.
RECOVER
02
Improve and reproduce
Correct a known weak point or update a fit while reproducing the part.
IMPROVE
03
Document legacy tooling
Turn one-of-a-kind fixtures into archived, reorderable files.
DOCUMENT

What you get back.

Every project ends the same way: a file you own and a part you can reorder on demand.

The file
Editable CAD
The proof
Checked to scope
The reorder
Reprint-ready
The record
Archived & yours

A 15-minute quote, scoped per part.

Select the reverse-engineering deliverable, output, complexity, quantity, and service tier to build the quote, priced within 15 minutes during business hours. Engineering review confirms the final project scope and price.

QUOTE
Configured project quote
Your selected output, complexity, quantity, and service tier stay together in the quote. Pairs naturally with a print run of the recovered part.
PER PROJECT
See how quotes work
Already own the metal tool?
Rebuild your at-risk metal tools as domestic composite, cataloged by part number in your digital locker and reprinted on demand: a local, low-volume alternative to imported metal tooling.
PRINT-ONLY
Every reorder
Rebuild, Catalog, Replace

Send the old part. Get a new file.

Editable CAD, reproduced parts, and a 60-day make-it-right guarantee. Priced as a standalone deliverable, quoted per project within 15 minutes during business hours. No file yet? Describe the problem or ask us to call. On the Front Range, we can visit.

Send a Model, Design, or Part Read the Guarantees
